<------------------ SOLD ------------------> 1981 Austro-Daimler Inter-10
Circa 1980 / 1981 Austro-Daimler model Inter 10 bicycle
This particular bicycle was purchased new back in 1981 and has since that point in time been ridden less than two miles distance, and even then, not ever out on the open road. And while there are a precious few paint nicks to be found as a result of having been stored and moved about over the course of nearly thirty years (...principally, along the left side rear chain stay), it is otherwise in what most people would consider to be mint condition. It has always been stored comfortably in a climate controlled indoor environment.
TYPE:
10 speed - "lightweight" road /.race type - circa 1980 / 1981 model Inter 10 - made in Austria
SIZE:
21.65 inches or 55 cm : 550 mm (physical seat tube C-t-T) - 570 mm (physical top tube C-t-C) - 425 mm (chain stay) - 101 cm (wheelbase) - 30.50 inches (standover height with 700c wheelset) - 40 mm (fork rake) - 72 degree (head tube angle) - 61 degree (down tube angle) - 72 degree (seat tube angle)
COLOR:
Deep Burgundy with Gold pinstripe accents
FRAME:
Reynolds 531 double-butted manganese-molybdenum alloy steel tubing - French metric sized tube set (26 mm top tube / 28 mm down tube and seat tube) - Bocama Professional short point lugs with 68 mm bottom bracket shell - Shimano model FE-SF20 forged horizontal rear dropouts with machined facings, standard 10 mm x 26 TPI threaded derailleur hanger and locating notch, spring tensioned adjustment screws, and rack eyelets - 122 mm dropout spacing
FORK:
Reynolds 531 double-butted manganese-molybdenum alloy steel - 25 mm x 1 mm (25.4 TPI) French threaded steer tube (...presumed) - forged steel Bocama (BCM) semi sloping fork crown - Shimano model FE-SF20 forged dropouts with machined facings and rack eyelets - 100 mm dropout spacing
HEADSET:
Unknown - threaded headset - 25 mm x 1 mm (25.4 TPI) French thread (...presumed) - chrome plated steel - model Unknown
STEM:
G.B. - forged aluminum alloy - Clear anodized finish - 22.2 mm quill (...which makes for a combination which I thought was peculiar to Swiss bikes) - 26.4 mm size clamp - 85 mm length - single bolt non-quick release - model Accord Biba
HANDLEBARS:
Frica - aluminum alloy with logo etching - traditional non-anatomic profile - 26.4 mm center section - 39 cm O-t-O / 127 mm reach / 197 mm drop - model Unknown : handlebar tape - cotton cloth - Black
BOTTOM BRACKET:
Stronglight - traditional non-cartridge adjustable type bottom bracket for 68 mm shell - nickel steel rifled spindle - square taper - 123 mm width with 7 mm drive side asymmetrical offset - 35 mm x 1 mm (25.4 TPI) French thread cups (non-drive side adjustable cup - right threading / drive side fixed cup - also right threading) - aluminum alloy lock ring - model Competition 65 : Stronglight crank bolts and washers - M8 x 1.00 x 20 mm steel bolts with 16 mm head / M8 copper flat washers - model 59 (bolts) / 60 (washers)
CRANKSET:
Stronglight - 122 mm BCD - 42/52 non anodized aluminum alloy chain rings / aluminum alloy outer chain guard - 170 mm non anodized forged aluminum alloy arms / 9/16" x 20 TPI pedal threads / pre 1982 23.35 mm x 1 mm cap threads - late model Allen head chain ring bolts (part numbers 61 and 62) - model 49D : Stronglight dust caps - chrome plated steel - slotted key release
CHAIN:
Sedis - 1/2" x 3/32" (12.7 mm x 2.38 mm) standard profile - duo-tone "d'Or/ Noire" or "Gold / Black" finish - riveted bushings - flat plates - Delta hardened pins - model Sedicolor 4 DG
HUBSET:
Atom - quick release hubs - small flange design - 1979 date codes - 36h front hub (100 mm spacing) - 36h rear hub (122 mm spacing) - 34.7 mm x 1 mm (25.4 TPI) French freewheel thread (...presumed) - model Sport : M.M. Atom - curved handle quick release mechanisms - chrome plated steel end caps - Black DuPont Delrin "winged" knurled adjusters - model 3705 (front) / 3706 (rear)
RIMS:
Weinmann - polished aluminum alloy with eyelets - 23.5 mm section - drop center rim profile (no hooked bead) - smooth / non-machined braking surfaces - 700c clincher - drilled for Presta valves - 36h front / 36h rear - model 210-700c
SPOKES:
Sapim - butted 18/8 stainless steel - laced three cross - model Inox : nickel plated brass nipples
TIRES:
Semperit - 700c x 25 (25-622) - folding clincher design - black with gum sidewall - model 15c1
FREEWHEEL:
Maeda / SunTour - 14/28 (14-17-20-24-28) standard 5 speed - 2 notch removal interface - 34.7 mm x 1 mm (25.4 TPI) French thread (...presumed) - 3x2 stepped body - individually threaded cogs - 24 and 28 tooth cogs "factory" drilled - model Perfect
SHIFT LEVERS:
Huret Success - shift control levers - down tube mount - 28.0 mm chrome plated steel clamp - forged aluminum alloy levers - "D" ring adjustment screws - model 1164-00
FRONT DERAILLEUR:
Huret Challenger II - 28.0 mm clamp-on mount - light aluminum alloy construction with chrome plated steel cage - post 1977 C.P.S.C. compliant enclosed leading edge / SPP (Spring Push Plate) system - double or triple chain wheel capacity - model 1050
REAR DERAILLEUR:
Huret Success Titanium - titanium upper and lower brackets marked with "T" inside a circle - forged light aluminum alloy shift arm - pivoting cable barrel mount - adjustable stop plate and demountable lower pivot bracket to accommodate either a 24 or 28 tooth maximum freewheel cog - 12 to 24 or 13 to 28 tooth freewheel capacity (adjustable) / 36 to 53 tooth front chain wheel capacity - stamped aluminum alloy pulley cage plates - model 2460
BRAKE LEVERS:
Weinmann - traditional non-aero cable routing - factory "drilled" aluminum alloy levers - "full style" gum hoods - model Carrera 600 / 185
BRAKE CALIPERS:
Weinmann - forged aluminum alloy construction - single pivot semi-automatic side pull design - non recessed acorn nut mount - 41 to 52.5 mm reach (short) - integrated QR lever / cable barrel adjuster - no wheel guides - model Carrera 600
PEDALS:
Union - quill style pedals - Cr/Mo steel spindles with aluminum alloy cages - 9/16" x 20 TPI thread - C.P.S.C. compliant front and rear reflectors (...removable) - model 77 (...a quality West German quill pedal very similar to the T.A. model W-4960) : Christophe toe clips - size Medium (57 mm long) - chrome plated steel - model 50C : Record leather straps - Black - metal buckles - plastic pinch rollers
SADDLE:
Selle Italia - Black leather cover - Manganese steel frame and rails - model Touring (...identical in size and shape to an Avocet Touring anatomic model, which should not come as a surprise since it was actually made by Selle Italia as well)
SEAT POST:
G.P. - one piece cast aluminum alloy construction - single bolt micro adjusting pivot clamp - 180 mm (...presumed - as far as I know, these were only made in one length) x 26.4 mm - model Gran Sport (...the G.P. being Giovanni Papillardo de Milano or G.P.M. / Gipiemme)

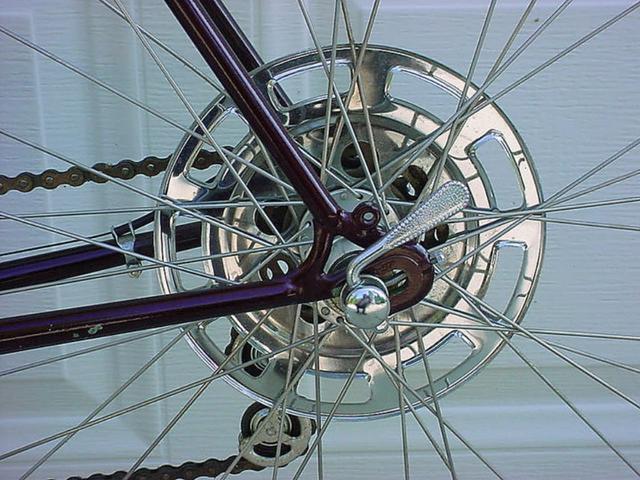

ACCESSORIES:
Huret - spoke protector - slip fit - chrome plated steel with reinforced hub section - 35 mm center hole - 30t maximum - model 999
A.D. (generic) - original front and rear mount reflectors
