Bottom Bracket - 01

BOTTOM BRACKET:

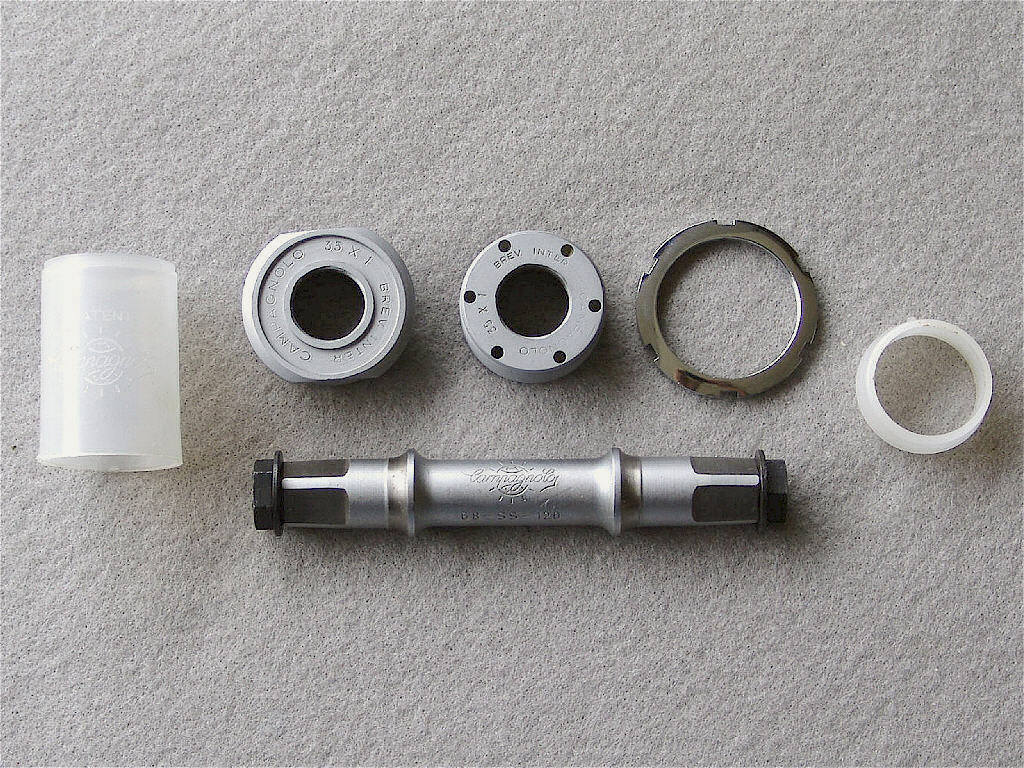

Campagnolo Nuovo Record - traditional non-cartridge adjustable type bottom bracket for 68 mm shell - stainless steel rifled spindle - square taper - pre 1978 112 mm width with 5 mm drive side asymmetrical offset - caged ball bearings - 35 mm x 1 mm (25.4 TPI) French thread satin finish steel cups (non-drive side adjustable cup - right threading / drive side fixed cup - also right threading) - chromed steel lock ring - two piece plastic dust sleeve - model 1046/A (68-SS-120) : M8 x 1.00 x 20 mm crank bolts with 15 mm head / M8 flat washers - steel - early style Black finish - model 748 (bolts) / 749 (washers) ... [Correct and original, although I did replace the ball bearings as a matter of course in the process of refurbishing this bike.]
