Front Derailleur - 03

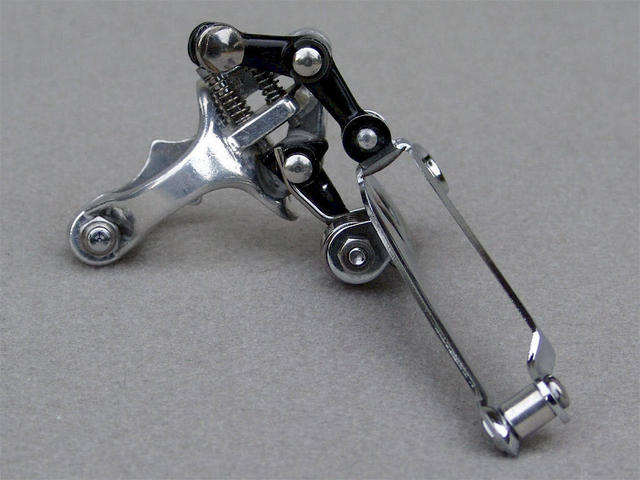

FRONT DERAILLEUR:
Campagnolo Super Record - 28.6 mm clamp-on mount - "CAMPAGNOLO" logo on facing of the hinged clamp - aluminum alloy body, hinged clamp, upper and lower pivot arms - chrome plated steel cage with Campagnolo "winged" logo on its outer facing - post 1972 with enlarged pivot post housings - post 1972 with circlip on upper pivot - post 1977 C.P.S.C. compliant "raised lip" style outer cage plate - post 1978 with series of three open windows on the outer facing of the cage plate - post 1981 with Black anodized aluminum alloy upper and lower pivot arms - model 1052/SR or 0104010 ... [A period correct replacement component for the very early Campagnolo Victory model 0104020 bottom pull front derailleur with bi-fold hinged clamp that was original equipment on this Pino Morroni, and arguably a more suitable companion for the specially modified Campagnolo Super Record rear derailleur which was fitted from new.]
